Detail
Detail
Specifications
Rohs/UL certificated
flame retardant pass VW-1
Flexible,non-halogen
shrink ratio:2:1/3:1

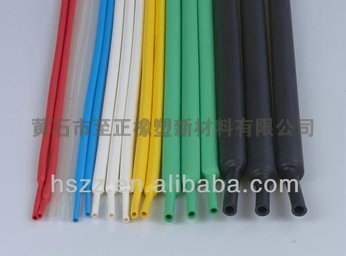

Product Information:
It is environmental friendly, flame retardant and halogen free.It is widely used for insulation, anticorrssion, protection and color coding etc.
Product Application:
1 Wire splices and terminations
2.Jacketing of Wire harnesses
3 Mechanical protection and fire-resistant covering
4 Insulation and strain relief of terminals and connections
Product Features:
1.Operating Temperature:-55~ 125 centi degree;
2.Shrinking Temperature:Start at 70 centi degree,and shrunk totally at 110centi degree
3.halogen free, flexible,flame retardant;
4.Certificate: SGS test, Rohs, UL, Reach, ISO.
5 Standard color:black,white,red,yellow,green,blue, more colors available upon request

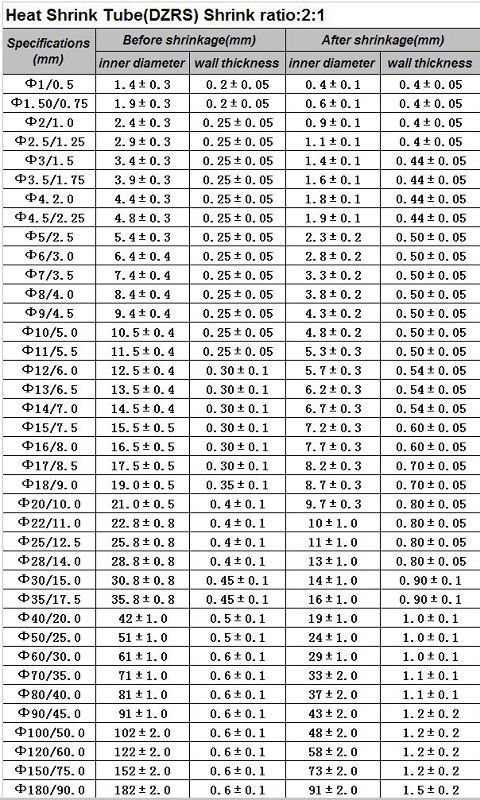

Specification Catalogue:(Size Chart)
.jpg)
| Technical data sheet | |||
| Description | Test Methods | Values | |
| Physical | Tensile strength(Mpa) | GB/T1040 | ≥ 12 |
| Breakage elongation rate(%) | ≥200 | ||
| Tensile strength(Mpa) | UL224 158°C*168hr | ≥10 | |
| Breakage elongation rate(%) | ≥200 | ||
| Low temperature flexibility | (-40°C x 4h) | No cracking | |
| Electrical | dielectric strength(KV/mm) | GB/T1408 | ≥15 |
| Voltage resistant | UL224 | 2.5KV No breakdown | |
| volume resistivity(ohm.cm) | GB/T1410 | ≥1*1014 | |
| Chemical | Anti-corrosive performance | UL224 158°C*168hr | Pass |
| Copper stability | Pass | ||
| Fire resistant | UL224 | VW-1 | |
